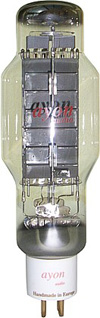

It is the largest single plate DHT available today. We like to call her the "Queen of Single Ended Triodes".
| Specifications: |
| Tube |
AA 62B |
| Plate Voltage |
635 V |
| Plate Current |
145 mA |
| Plate Current |
200 mA max. |
| Plate Dissipation |
90 W |
| Transconductance |
7 mA / V |
| Grid Voltage |
-138 V |
| Grid Resistor |
47K Ohms |
| Amplification Factor |
4.0 |
| Plate Impedance |
470 Ohms |
| Load Impedance |
1000 - 2400 Ohms |
| THD |
<0.1 % |
| Power Output pure Class-A |
33 W |
| Filament Voltage |
4.7 - 5.0 V |
| Filament Current |
2.0 A |
| Tube size incl. Socket |
H 215 x 68 mm |
|
All Ayon vacuum tubes possess a vacuum of 10-9 Torr, a maximum grid current of 2.2 microampere and absolutely constant emission.
